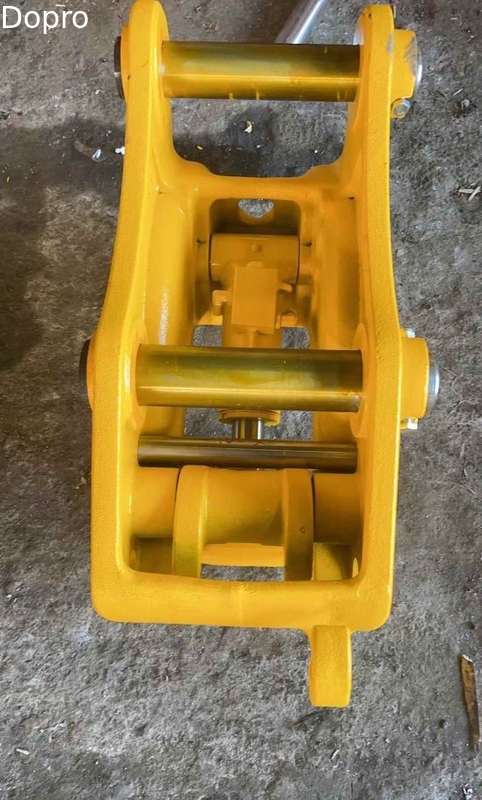

Excavator Quick Couplers: A Comprehensive Guide for Construction Professionals

Product Details

Place of Origin: CHINA

Brand Name: DOPRO

Certification: ISE CO

Model Number: DPAQ1000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 20-200

Packaging Details: WOODEN BOX

Delivery Time: 3-7DAYS

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 3000PCS

Get Best Price
Highlight:
Excavator Quick Couplers: A Comprehensive Guide for Construction Professionals

Excavator Quick Couplers: A Comprehensive Guide for Construction Professionals


In the world of construction and heavy machinery, excavator quick couplers serve a vital role in improving efficiency and versatility. These couplers are used to connect various attachments to an excavator within seconds, enabling operators to switch between tasks seamlessly. As a result, quick couplers reduce downtime and increase productivity, making them an essential component for many construction projects.


Different Types of Quick Couplers
Quick couplers for excavators are designed to simplify the process of changing attachments, increasing efficiency, and reducing downtime. There are two primary types of quick couplers: mechanical and hydraulic. Each of these has its advantages and specific applications in the field.
Manual Quick Couplers
A common choice for budget-conscious operators, Manual Quick Couplers come in a variety of styles but generally involve manually entering or removing a pin to lock the bucket in.

This is commonly referred to as a manual “pin-puller” coupler – where the front of the coupler is an open slot that you can hook on a bucket, and the rear is a dedicated pin hole that you fix you attachment to. This retains the breakout force while still improving your efficiency.

These are generally significantly cheaper than Mechanical or fully Hydraulic Quick Couplers while still offering an increase in efficiency, but you're still working with adding and removing pins to swap attachments out.

You'd be surprised at how much of a difference it makes compared to direct mounting every single attachment though – it really is a big quality of life increase.


Mechanical Quick Couplers
Mechanical quick couplers rely on manual force and physical locking mechanisms to secure attachments. These couplers typically involve a pinning system, where pins securely connect the attachment to the coupler. Mechanical quick couplers can either be universal or dedicated, with the former being more adaptable to different attachments.


Some advantages of mechanical quick couplers include:
Lower initial cost compared to hydraulic couplers
Less maintenance, as there are fewer moving parts
Simpler design, making them easily replaceable


Hydraulic Quick Couplers
Hydraulic quick couplers, as the name suggests, use hydraulic power to secure attachments to the excavator. Hydraulic couplers can also be universal or dedicated, offering the same versatility in attachment compatibility. These couplers are designed to provide a more convenient and efficient method of changing attachments compared to their mechanical counterparts.

Advantages of hydraulic quick couplers include:
Fast and easy attachment changes from within the cab
Increased safety due to reduced manual handling
Ability to handle high-pressure applications, as seen in this report

Whether excavator operators choose mechanical or hydraulic quick couplers, the ultimate goal is to expedite the process of changing attachments and to maximize productivity on the job site. The right choice will depend on the specific needs of the operation and the types of attachments typically used by the excavator.


Tilting Quick Couplers
These are newer on the market, but companies are starting to make Tilting Quick Couplers. These are very expensive, but drastically increase efficiency by not having to reposition your machine to change angles or digging directions.

All Tilting Quick Couplers must be, by definition, Hydraulic quick couplers as well — since the tilt functionality operates off of hydraulic pressure. So think of Tilting quick couplers as an upgrade to a hydraulic quick coupler.


SPECIFICATION
Model                   Unit      DPAQ250       DPAQ450       DPAQ500      DPAQ600       DPAQ700       DPAQ900       DPAQ1000
Length(0) mm 300~450 534~545 581~610 765 924~944 983~1050 1006~1173
Height(G) mm 246 307 310 388 492 574 558~610
Width(B) mm 175 258~263 270~280 353~436 449~483 543~568 606~663
PinsCenter Distance(D) mm 80~150 230~270 290~360 380~420 460~480 473~540 550~620
ArmWidth(A) mm 80~140 155~170 180~200 232~315 306~340 375~411 416~469
Retractable Distance ofoilCylinder mm 170~206 205~275 340~450 340~486 256~390 413~590 520~590
Vertical Pins Center Distance mm 159 195 195 220 275 300 360
Weight kg 25 50~60 80 120~130 280~290 420~430 450~580
Working Pressure kg/cm² 40~380 40~380 40~380 40~380 40~380 40~380 40~380
Necessary Flow L/min 10~20 10~20 10~20 10~20 10~20 10~20 10~20
Suitable Excavator ton 1.5~4 4~7 5~8 9~19 17~23 23~30 33~45
