Product Details
Place of Origin: CHINA
Brand Name: Dopro
Certification: ISO CE
Model Number: DPSB680
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-800
Packaging Details: Export Wooden Cases /Pallet
Delivery Time: 3-7 working Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 Pcs per month
Service: |
OEM Service Available |
Package: |
Wooden Cases Or Pallets |
Rod Diameter: |
75mm Chisel |
Material: |
20 CrMo |
Power Source: |
Hydraulic |
Chisel Diameter: |
Depends On Model, Ranging From 40mm To 200mm |
Color: |
Customer's Request |
Bracket Type: |
Top Type, Side Type, Silence Type |
Weight: |
Depends On Model, Ranging From 100kg To 10,000kg |
Service: |
OEM Service Available |
Package: |
Wooden Cases Or Pallets |
Rod Diameter: |
75mm Chisel |
Material: |
20 CrMo |
Power Source: |
Hydraulic |
Chisel Diameter: |
Depends On Model, Ranging From 40mm To 200mm |
Color: |
Customer's Request |
Bracket Type: |
Top Type, Side Type, Silence Type |
Weight: |
Depends On Model, Ranging From 100kg To 10,000kg |

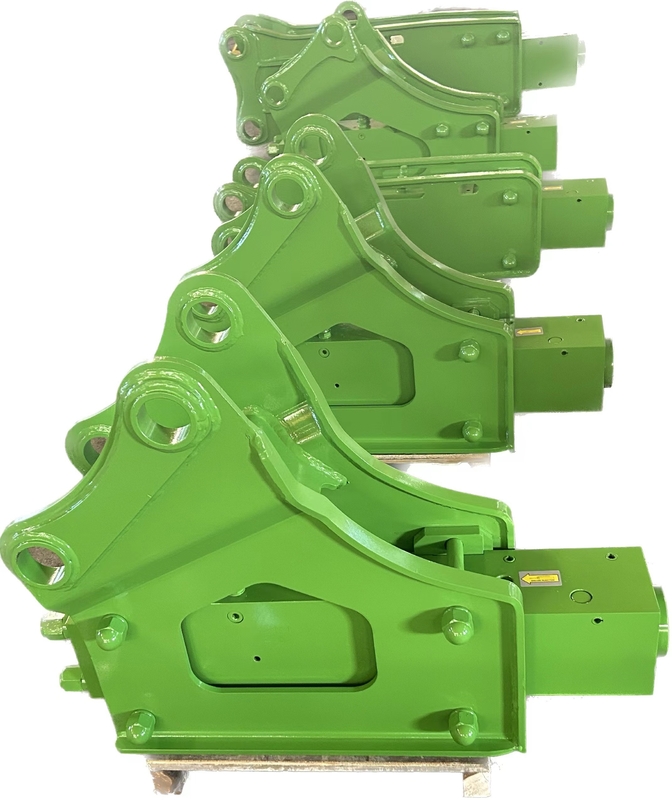

75mm Chisel Diameter Excavator Rock Breaker For Mini Excavator
Excavator Rock Breaker
All parts are thoroughly inspected at every time that each process such as cutting, heat treatment, machining, grinding, cleaning, assembly, etc. is carried out, and all inspection data per each production lot are maintained and controlled so as to be utilized as data for better qualities and performance improvement.
| SPECIFICATION | ||||||||
| Model | DPSB400 | DPSB450 | DPSB530 | DPSB680 | DPSB750 | DPSB1000 | ||
| Suitable Excavator |
Min | ton | 0.8 | 1.2 | 3 | 6 | 7 | 11 |
| Max | ton | 2.5 | 3 | 5.5 | 9 | 14 | 17 | |
| Suitable | ton | 1 | 2 | 4 | 7 | 7 | 14 | |
| Tool (MoilType) |
Weight | Kg | 4 | 6 | 9 | 20 | 25 | 59 |
| Diameter | mm | 40 | 45 | 53 | 68 | 75 | 100 | |
| OperatingWeight (Tool+M/C) |
Kg | 70 | 90 | 120 | 250 | 380 | 765 | |
| h IL |
158 | 200 | 330 | 605 | 649 | 1749 | ||
| Height | mm | 972 | 1071 | 1147 | 1349 | 1618 | 1934 | |
Operating Pressure (Breaker) |
bar | 90～120 | 90～120 | 90～120 | 110~140 | 120～150 | 150～170 | |
| psi | 1,160～1,450 | 1,160～1,450 | 1,305～1,740 | 1,377～1,885 | 1,450~2,030 | 2,175～2,465 | ||
| Setting Pressure (Machine) |
bar | 150 | 150 | 150 | 170 | 180 | 200 | |
| psi | 2175 | 2175 | 2175 | 2465 | 2610 | 2900 | ||
| Impact Rate | bpm | 800～1,400 | 700～1,200 | 600~1,100 | 500～900 | 400～800 | 350～700 | |
| BackHead Pressure (N2-Gas) |
bar/psi | 14/203 | 14/203 | 16/232 | 16/232 | 16/232 | 16/232 | |
| Required Oil Flow | l/min | 15～30 | 20～40 | 25～50 | 40~70 | 50～90 | 80～110 | |
| SPECIFICATION | ||||||||
| Model | DPSB1350 | DPSB1400 | DPSB1500 | DPSB1550 | DPSB1650 | DPSB1750 | ||
| Suitable Excavator |
Min | ton | 16 | 18 | 25 | 28 | 20 0 |
40 |
| Max | ton | 21 | 26 | 30 | 25 | 45 | 55 | |
| Suitable | ton | 20 | 24 | 24 | 34 | 40 | 50 | |
| Tool (MoilType) |
Weight | Kg | 125 | 129 | 129 | 193 | 233 | 311 |
| Diameter | mm | 135 | 140 | 140 | 155 | 165 | 175 | |
| Operating Weight (Tool+M/C) |
Kg | 1462 | 1740 | 2144 | 2413 | 2650 | 3857 | |
| lb | 3190 | 3916 | 3916 | 5940 | 6589 | 9020 | ||
| Height | mm | 2295 | 2429 | 2623 | 2776 | 2953 | 3189 | |
Operating Pressure (Breaker) |
bar | 160～180 | 160～180 | 160～180 | 160～180 | 160～180 | 160～180 | |
| psi | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,276~2,702 | 2,276～2,845 | ||
Setting Pressure (Machine) |
bar | 210 | 210 | 210 | 220 | 240 | 240 | |
| psi | 3045 | 3045 | 3045 | 3190 | 3480 | 3480 | ||
| Impact Rate | bpm | 350～600 | 350～500 | 300～450 | 300～450 | 250～400 | 150～350 | |
| Back Head Pressure (N2-Gas) |
bar/psi | 16/232 | 16/232 | 16/232 | 16/232 | 17/246 | 18/261 | |
| Required Oil Flow | l/min | 100～150 | 120～180 | 150～210 | 180～240 | 200～260 | 200～290 | |
