Product Details
Place of Origin: CHINA
Brand Name: Dopro
Certification: ISO CE
Model Number: DPBB2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1000-20000
Packaging Details: Export Wooden Cases /Pallet
Delivery Time: 5-7 Working Days
Supply Ability: 7000 Pcs Per Month
Warranty: |
12 Months |
Color: |
Customer Required |
Application: |
Mining,Crawler Excavator,Construction |
Type: |
Side Type/top Open Type /box Silenced Type |
After-sales Service Provided: |
Video Technical Support |
Material: |
42CrMo,20CrMo |
Chisel Diameter: |
40 - 210 Mm |
Weight: |
53-6500 KG |
Condition: |
100%new,durable,long Life |
Name: |
Hydraulic Breaker For Backhoe Loader,Hydraulic Hammer Rock Breaker For Excavator |
Part Name: |
Hydraulic Hammer Rock Breaker |
Product Name: |
Soosan Hydraulic Breaker,Hydraulic Hammer Rock Breaker,Hammer For Excavator |
Oem: |
Avaliable |
Oem/odm: |
Available,Acceptable |
Warranty: |
12 Months |
Color: |
Customer Required |
Application: |
Mining,Crawler Excavator,Construction |
Type: |
Side Type/top Open Type /box Silenced Type |
After-sales Service Provided: |
Video Technical Support |
Material: |
42CrMo,20CrMo |
Chisel Diameter: |
40 - 210 Mm |
Weight: |
53-6500 KG |
Condition: |
100%new,durable,long Life |
Name: |
Hydraulic Breaker For Backhoe Loader,Hydraulic Hammer Rock Breaker For Excavator |
Part Name: |
Hydraulic Hammer Rock Breaker |
Product Name: |
Soosan Hydraulic Breaker,Hydraulic Hammer Rock Breaker,Hammer For Excavator |
Oem: |
Avaliable |
Oem/odm: |
Available,Acceptable |

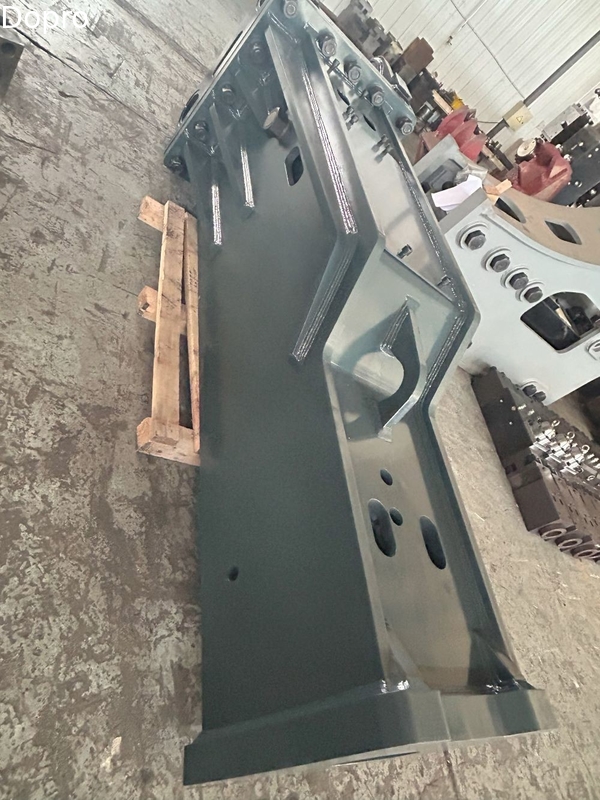

Korean Soosan Series Excavator Rock Breaker For Chisel 210mm Heavy Duty
·Selected raw material – high quality heavy duty wear resistant steel.
· Hydraulic-gas system, increase stability.
· High-quality and durable wear parts.
·Advanced manufacturing facilities, introduced from Korea.
·High energy and impact frequency (high performance).
· High-performance optimized hydraulic unit.
·Low maintenance, less breakdown, long using life.
| SPECIFICATION | ||||||||
| Model | DPBB400 | DPBB450 | DPBB530 | DPBB680 | DPBB750 | DPBB1000 | ||
| Suitable Excavator |
Min | ton | 0.8 | 1.2 | 2.5 | 4 | 6 | 11 |
| Max | ton | 2.5 | 3 | 4.5 | 7 | 9 | 16 | |
| Suitable | ton | 1 | 2 | 3 | 6 | 7 | 14 | |
Tool (MoilType) |
Weight | Kg | 4 | 6 | 9 | 20 | 25 | 59 |
| Diameter | mm | 40 | 45 | 53 | 68 | 75 | 100 | |
| Operating Weight (Tool+MC) |
Kg | 102 | 126 | 152 | 295 | 375 | 861 | |
| lb | 298 | 320 | 397 | 683 | 838 | 1962 | ||
| Height | mm | 1135 | 1213 | 1317 | 1620 | 1899 | 2316 | |
Operating Pressure (Breaker) |
bar | 80～100 | 80～100 | 90～120 | 95～130 | 100～140 | 150～170 | |
| psi | 1,160～1,450 | 1,160~1,450 | 1,305~1,740 | 1,377～1,885 | 1,450~2,030 | 2,175～2,465 | ||
Setting Pressure (Machine) |
bar | 150 | 150 | 150 | 170 | 180 | 200 | |
| psi | 2175 | 2175 | 2175 | 2465 | 2610 | 2900 | ||
| Impact Rate | bpm | 800～1,400 | 700～1,200 | 600～1,100 | 500～900 | 400～800 | 350～700 | |
BackHead Pressure (N2-Gas) |
bar/psi | 14/203 | 14/203 | 16/232 | 16/232 | 16/232 | 16/232 | |
| Required Oil Flow | l/min | 15～30 | 20～40 | 25～50 | 40~70 | 50～90 | 80～110 | |
| SPECIFICATION | ||||||||
| Model | DPBB1350 | DPBB1400 | DPBB1500 | DPBB1550 | DPBB1650 | DPBB1750 | ||
| Suitable Excavator |
Min | ton | 16 | 18 | 25 | 28 | 30 | 40 |
| Max | ton | 21 | 26 | 30 | 35 | 40 | 55 | |
| Suitable | ton | 20 | 24 | 24 | 34 | 40 | 50 | |
Tool (Moil Type) |
Weight | Kg | 125 | 129 | 129 | 193 | 233 | 311 |
| Diameter | mm | 135 | 140 | 150 | 155 | 165 | 175 | |
Operating Weight (Tool+M/C) |
Kg | 1500 | 1766 | 2071 | 2632 | 3400 | 3991 | |
| lb | 3968 | 4453 | 4453 | 5820 | 7055 | 11089 | ||
| Height | mm | 2682 | 2813 | 3063 | 3215 | 3395 | 3736 | |
Operating Pressure (Breaker) |
bar | 160～180 | 160～180 | 160～180 | 160～180 | 160～190 | 160～200 | |
| psi | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,320～2,610 | 2,276~2,702 | 2,276～2,845 | ||
Setting Pressure (Machine) |
bar | 210 | 210 | 210 | 220 | 240 | 240 | |
| psi | 3045 | 3045 | 3045 | 3190 | 3480 | 3480 | ||
| Impact Rate | bpm | 350～600 | 350～500 | 300～450 | 300～450 | 250～400 | 200～350 | |
| Back Head Pressure (N2-Gas) |
bar/psi | 16/232 | 16/232 | 16/232 | 16/232 | 17/246 | 18/261 | |
| Required Oil Fow | l/min | 100～150 | 120～180 | 150～210 | 180～240 | 200～260 | 210～290 | |
