Product Details
Place of Origin: CHINA
Brand Name: Dopro
Certification: ISO CE
Model Number: DPAT200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-100
Packaging Details: Export Wooden Cases /Pallet
Delivery Time: 3-5 Working Days
Supply Ability: 1000 Pcs Per Month
Condition: |
New |
Power Type: |
Hydraulic |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Application: |
Compaction,Construction |
Weight: |
175KG |
Color: |
Customer's Demands |
Product Name: |
Hand Held Hydraulic Vibrating Plate Compactor,Soil Plate Compactor |
Material: |
Steel,Q345B |
Compaction Depth: |
20cm |
Condition: |
New |
Power Type: |
Hydraulic |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Application: |
Compaction,Construction |
Weight: |
175KG |
Color: |
Customer's Demands |
Product Name: |
Hand Held Hydraulic Vibrating Plate Compactor,Soil Plate Compactor |
Material: |
Steel,Q345B |
Compaction Depth: |
20cm |

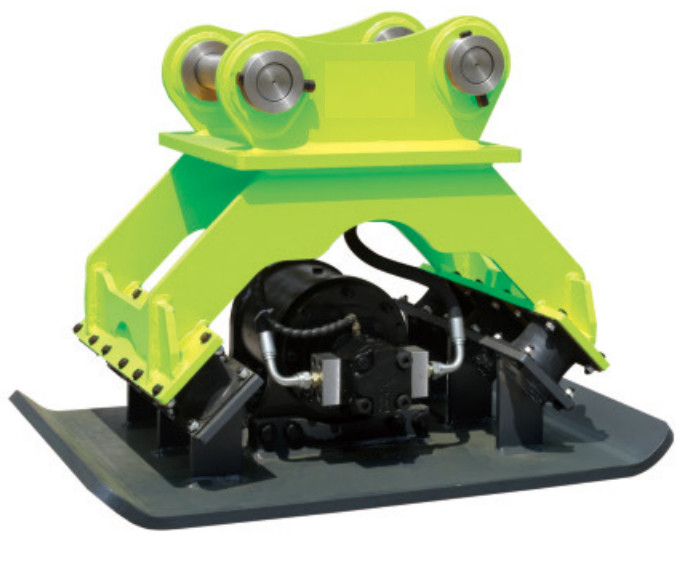

Concrete Mini Excavator hydraulic Plate Compactor for Sunward Mini Excavator SWE15 SWE18
Suitable:
3.5-32 ton excavator.
Leveling of high way and railway slopes, roads,
construction, building floors.
Features:
1.Q355 material, high strength;
2. New design, easy operation, using the same circuit
as the hydraulic breaker;
3.Imported motor, stable and reliable in use.
| SPECIFICATION | |||||
| Model | Unit | DPAT300 | DPAT600 | DPAT800 | DPAT1000 |
| Impulse Force | Ton | 4 | 6.5 | 15 | 15 |
| Vibration Frequency | Rpm | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 45~75 | 85~105 | 120~170 | 120~170 |
| Operating Pressure | kg/cm² | 100~130 | 100~130 | 150~200 | 150~200 |
| Weight | kg | 300 | 500 | 900 | 950 |
| Bottom Measurement | (LxWxT)mm | 900x550x25 | 1160x700x28 | 1350x900x30 | 1350x900x30 |
| Height | mm | 760 | 920 | 1060 | 1100 |
| Width | mm | 550 | 700 | 900 | 900 |
| Suitable Excavator | ton | 4-9 | 11-16 | 17-23 | 23-30 |
