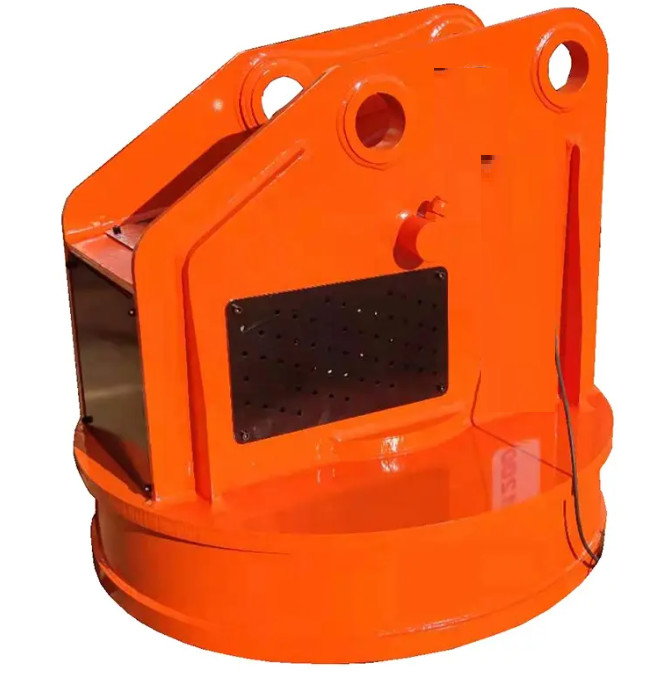

Custom Hydraulic Excavator Magnet , Round Scrap Lifting Magnet For Crane Forklift

HYDRAULIC MAGNET for Crane Forklift Excavator spare part Round Scrap Lifting Magnet

These lifting magnets are intended for hoisting steel plates, capable of automatically selecting a number of sheets. Billet hoisting. These lifting magnets are specialized for hoisting billet bundles. Hydraulic excavators. These lifting magnets are for attaching to hydraulic excavators.

Apermanent magnet motor isused to drive theelectric suction cup.The motoris compactand has a power of 10-15
kilowatts.It is placed above the excavator engine.The power generation comes from the excavator engine, which drives
the motor through the pulley to generate electricity.The permanent magnet motor has a low failure rate and the cost is
much lower than that of a dieselgenerator.The disadvantageis thatthe electric power generated is weaker than thatof
dieselgenerators, and the suction force ofthe suction cupis reduced.If Dieselelectric can absorb 800 kilograms, while
motorcan only absorb600 kilograms

Application
Used for construction relocation, steel mills, scrap steel and other industries of steel and magnetic materials sorting, distribution and transportation.
Main features
● Simple installation, convenient operation, low failure rate, no noise, meet environmental protection requirements.
● The excitation coil has been treated with a special process to improve the electrical and mechanical energy of the coil. The heat resistance level of the reinforced material has reachedlevel C, and the service life is longer.

The suction cup is made of wear-resistant and heat-resistant material,with a large opening and alarge grasping range. Conventional breaker pipeline,one-way pipeline is enough.The oil return pipe interface is fixed,and there is no need to connect the oil tank of the excavator
separately. Remote control receiving box,safe,convenientand fast degaussing

Excavator Electromagnetic Magnet
Applicable objects
Suitable for scrap iron plants, the contactor is easy to replace, and the delay switch automatically shuts off.
Product Features
High lifting capacity and light weight;
Low power consumption and long service life.
Application
Suitable for scrap iron factories, contactors are easy to replace, delay switch automatically power off.
Main features
● High lifting capacity, light self-weight.
● Low power consumption, long service life.

Product Parameters
