High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket

Name: High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket
Brand: Yantai Dopro Industry Technology Co., Ltd.
SKU: DPMG3000
Price: 505.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Dopro

Certification: ISO CE

Model Number: DPMG3000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 10-1000

Packaging Details: Export Wooden Cases /Pallet

Delivery Time: 3-7 Working Days

Supply Ability: 1000 Pcs Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Strength Excavator Grapple Bucket, Mechanical Excavator Grapple Bucket, Mechanical Grapple Bucket


Name:	Excavator Grapple Bucket	Color:	Customer Required,Customer's Request
Warranty:	12 Months	Type:	Excavator Spare Parts,Rotary & Non-rotarty,Agro-Forestry Monitoring System
Application:	Excavator,gravels	Material:	Q345B/NM360/HARDOX500
After-sales Service Provided:	Video Technical Support,Online Support	Condition:	New
Usage:	Load Or Unload Sand Or Something Else,wood Or Rock Grappling	Packing:	Wooden Pallet Or Customized,Standared Package,Wooden Case
Suitable Excavator:	5-11Ton,24--30tons	Part Name:	Grapple,Excavator Bucket
Origin:	YANTAI,China

Name:	Excavator Grapple Bucket
Color:	Customer Required,Customer's Request
Warranty:	12 Months
Type:	Excavator Spare Parts,Rotary & Non-rotarty,Agro-Forestry Monitoring System
Application:	Excavator,gravels
Material:	Q345B/NM360/HARDOX500
After-sales Service Provided:	Video Technical Support,Online Support
Condition:	New
Usage:	Load Or Unload Sand Or Something Else,wood Or Rock Grappling
Packing:	Wooden Pallet Or Customized,Standared Package,Wooden Case
Suitable Excavator:	5-11Ton,24--30tons
Part Name:	Grapple,Excavator Bucket
Origin:	YANTAI,China

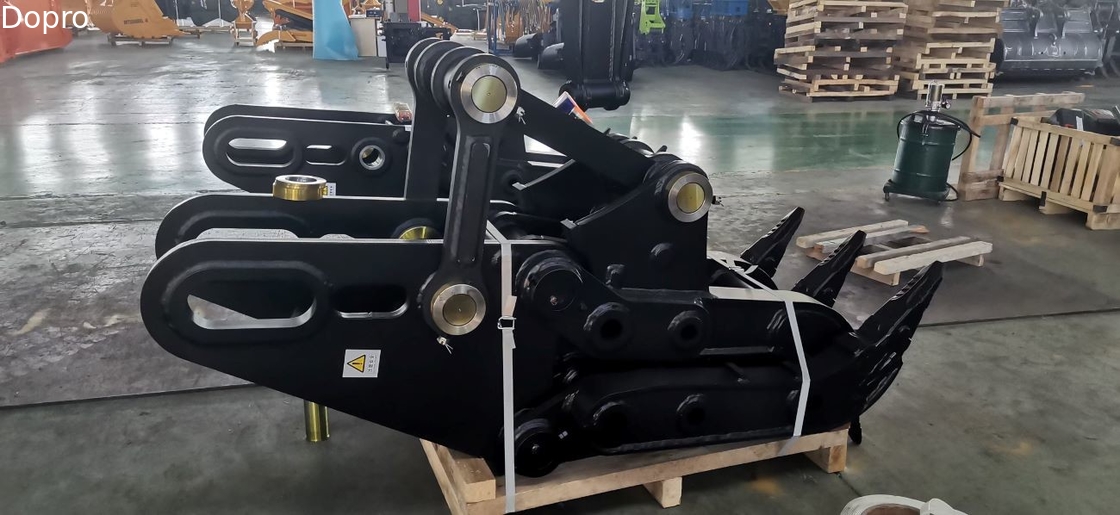

High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket

High strength Excavator MECHANICAL STEEL GRAPPLE

What is a mechanical grapple?
Mechanical Grapple is mounted to the dipper end & bucket link with standard. hangers. This means it can be used in conjunction with a quick hitch. The upper, moveable jaw pivots on the dipper end. It is 'opened & closed' by the bucket link in.

Mechanical Grapple is mounted to the dipper end & bucket link with standard
hangers. This means it can be used in conjunction with a quick hitch.
The upper, moveable jaw pivots on the dipper end. It is ‘opened & closed’ by the bucket link in
exactly the same way that a bucket is operated.
The lower, fixed jaw is connected by thrust bar to 3 position bracket welded on the underside of
the dipper arm. We supply the thrust bar, 3 position bracket & pivot pins with every grapple.
All grapples are supplied with a thrust bar, mounting pins and weld on 3 point pivot plate to
enable the grapple to be mounted to the excavator.
Grapples are manufactured with standard hangers, so they mount to both the dipper end &
bucket link. This also means the grapple can be used on a quick hitch.
We can also manufacture grapples to suit dedicated quick hitch systems.

Applications
Demolition of wooden structures, scrap handling, clean-
ing,moving, loading, sorting and organizing materials in
order,
Main features
●Multi-functional and easy to operate.
●Equipped with balance valve (USA SUN brand), safe
and high efficient.
●Easy installation.(share the same pipes with breaker).
●Custom service is available.(3+4 fingers/5+4 fingers for
your option.

SPECIFICATION
MODEL	DPAW500	DPAW1400	DPAW2000	DPAW3000	DPAW3800	DPAW4500
WEIGHT(kg)	400	900	1300	1700	2000	2451
MIN	100	280	310	340	566	705
MAX	1196	1709	1750	1880	2250	2600
H	675	1175	1244	1370	1846	2010
H1	397	741	778	1262	1550	1720
TON	4~7	12~18	18~25	28~35	36~42	43~47

High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket 0

High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket 1

High Strength Excavator Grapple Bucket / Mechanical Grapple Bucket 3
