Product Details
Place of Origin: CHINA
Brand Name: DOPRO
Certification: ISO CE
Model Number: DPAP4500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-9000
Packaging Details: Export Wooden Cases /Pallet
Delivery Time: 3-7Working Days
Supply Ability: 7000 Pcs Per Month
Warranty: |
12 Months |
Color: |
Requirement,Customer Required,customer's Request |
Material: |
Q345B,NM360/400,HARDOX450/500 |
Application: |
Excavator,For The Demolition Of Concrete Structures |
After-sales Service Provided: |
Online Support,Video Technical Support |
Type: |
Hydraulic,Pulverizer,Heavy Duty,Mine,Standard |
Weight: |
890kgs-4200kgs |
Condition: |
100%new |
Product Name: |
Concrete Pulverizer,Hydraulic Concrete Demolition Equipment Multi Processor Pulverizer,hydraulic Pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type) |
Name: |
PC200 Rock Crushers Concrete Hydraulic Pulverizer,Demolition Pulverizer,Hydraulic Jaw Pulverizer,concrete Pulveriser |
Suitable Excavator: |
17-24ton |
Packing: |
Wooden Pallet Or Customized |
Jaw Opening: |
0-890MM |
Key Word: |
Concrete Pulverizer,hydraulic Pulveriser |
Suitable: |
13t-50t Excavator And Backhoe |
Part Name: |
Pulverizer,Excavator Pulverizer And Shear |
Machine Type: |
04-10,18-26T Excavator |
Warranty: |
12 Months |
Color: |
Requirement,Customer Required,customer's Request |
Material: |
Q345B,NM360/400,HARDOX450/500 |
Application: |
Excavator,For The Demolition Of Concrete Structures |
After-sales Service Provided: |
Online Support,Video Technical Support |
Type: |
Hydraulic,Pulverizer,Heavy Duty,Mine,Standard |
Weight: |
890kgs-4200kgs |
Condition: |
100%new |
Product Name: |
Concrete Pulverizer,Hydraulic Concrete Demolition Equipment Multi Processor Pulverizer,hydraulic Pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type) |
Name: |
PC200 Rock Crushers Concrete Hydraulic Pulverizer,Demolition Pulverizer,Hydraulic Jaw Pulverizer,concrete Pulveriser |
Suitable Excavator: |
17-24ton |
Packing: |
Wooden Pallet Or Customized |
Jaw Opening: |
0-890MM |
Key Word: |
Concrete Pulverizer,hydraulic Pulveriser |
Suitable: |
13t-50t Excavator And Backhoe |
Part Name: |
Pulverizer,Excavator Pulverizer And Shear |
Machine Type: |
04-10,18-26T Excavator |

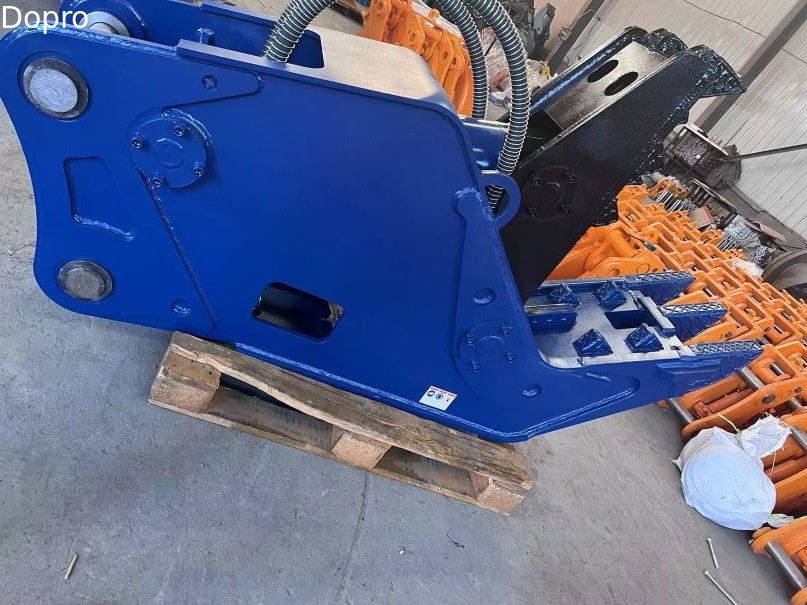

12-18 Tons Excavator Hydraulic Pulverizer For EX130 PC120 ZX130 SK120 CX130 CX160 JS140
Hydraulic Pulverizer Maintenance
1. Daily checkpoint: Whether there is any damage or defomation of the bodyhose interface leakage, damage to the pin and bushing and its replacementcycle, check the bolt and nut tightening loose state, check the oil level of thegear, check the gear loosening, tighten the bolt loosening.
2. Conventional checkpoint: the seals and rotating parts of the hydrauliccylinder will wear out, and should be replaced in time after reaching theservice life. Replacement parts should be matched with the original factory.
3. Check the tightening state of bolts, install new bolts, check 8 hours after useand ensure that the tightened bolts are not loose. Damaged bolts should bereplaced in time. Bolts should be replaced after approximately 1500 hours or12 months of use after installation.
4. When the demolition shears are in use, it is recommended to check whetherthere is oil leakage regularly to ensure no fault.
5. Every four hours (less frequent play): fill lubricating oil, lubric
6. Every half year or 1000 hours (whichever comes first) : replace the hydrauliccylinder oil seal and motor oil seal once. If the oil seal is not replaced withinthe prescribed period, there is a certain probability that other parts of theproduct will be damaged, such as: the cylinder pulled the cylinder body, etc.
| SPECIFICATION | |||||
| DESCRIPTION | UNIT | DPAP1600 | DPAP2000 | DPAP3000 | DPAP4500 |
| Applicable Excavator | ton | 14~20 | 18~26 | 26~32 | 38~48 |
| lbs | 30,864~44,092 | 39,683~57,320 | 57,320~70,547 | 83,775~105,821 | |
| Operating Weight | kg/lbs | 1,250/2,755 | 1,800/3,968 | 2,350/5,180 | 3,450/7,605 |
| Overall Length(L) | mm/inch | 1,580/62.2 | 1,806/71.1 | 1,990/78.3 | 2,336/919 |
| JawOpening | mm/inch | 800/31.4 | 980/38.5 | 1,100/43.3 | 1,300/51.1 |
| Force at Mid | ton/lbs | 70/154,323 | 120/264,554 | 195/429,901 | 270/595,248 |
| Operating Pressure | bar/psi | 280/4,061 | 300/4,351 | 320/4,641 | 320/4,641 |
| Setting Pressure | bar/psi | ||||
| Rotation Type | Fixed | ||||
| The following excavator we can match | |
| YUCHAI | YC35YC50YC55YC60YC65YC85YC135YC230 |
| JCB | JS130JS210JS220JS290JS330 |
| HYUNDAI | R55R60R80R130LC35R200R2005R210R2157/9R2205R225LC7/9R290 |
| R290R290LC7R300LCR305LCR330LCR375R360LC7R450LC | |
| CA*TERPILLAR | CA*T305.5CA*T306CA*T307CA*T308CA*T312CA*T315CA*T320CA*T323CA*T324 |
| CA*T325CA*T326CA*T330CA*T336CA*T345CA*T349CA*T365CA*T374CA*T390 | |
| KOMATSU | PC45PC50PC55PC56PC60567PC608PC708PC78PC1003PC1206 |
| PC1307PC2007/8PC220PC270PC240PC3006/7PC360PC4006/7/8 PC4506 | |
| PC6006PC6503PC650PC800PC1000PC1200PC1250 | |
| ZXAIS/HITACAI | EX35EX40EX55EX60EX603ZX200ZX210ZX250ZX290ZX330ZX470EX1000EX1200 |
| EC | EC55EC60EC140BPEW145BPEW160BBEC210EC240 |
| EC290EC360LCEC380.EC460EC480EC700 | |
| KOBELCO | SK35SK50SK60SK75SK100SK120SK200123456SK230SK250SK260SK280 |
| SK300SK330SK3306SK350SK400SK450SK480 | |
| DOOSAN/DAEWOO | DH35DH55DH60DH55DH60DH80DH807DH80GOLDDH150 |
| DH200DH22035DH2805DX60DX200DX225DX260DH290DH360DH420DH500 | |
| SUMITOMO | SH55SH60SH75SH50SH100SH120SH200 |
| SH20035SH22023SH280SH300SH350SH400SH450 | |
| LIUGONG | CLG904CLG9055CLG906CLG907CLG9075CLG908CLG915CLG150 |
| CLG920CLG921CLG922CLG225CLG924CLG925CLG933CLG936CLG939 | |
| CLG942 CLG948CLG950CLG952CLG200CLG205CLG220CLG225 | |
| KUBOTA | KX135KX185KX155KX161KX163KX165KX183 |
| IHI | IHI35IHI50IHI60IHI55IHI80IHI100 |
| XCMG | XE55XE60XE65XE75XE80XE85XE135XE150XE155XE200XE205XE215 |
| XE225XE245XE270XE305XE335XE370XE380XE400XE470XE490 XE700 | |
| YANMAR | ViO35ViO55ViO75 |
| cx | CX50CX55CX58CX75CX210CX240CX290CX330 |
| KATO | HD820HD1023HD1430HD2045HD700 |
| SANY | SY55SY60SY65SY70SY75SY85SY95SY115SY135SY155SY195SY200SY205SY215 |
| SY220SY225SY235SY245SY285SY305SY335SY365SY375 SY395SY415SY485 |
