Product Details
Place of Origin: CHINA
Brand Name: Dopro
Certification: ISO CE
Model Number: DPAC4500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-600
Packaging Details: Export Wooden Cases /Pallet
Delivery Time: 3-7 Working Days
Supply Ability: 6000 Pcs Per Month
Product Name: |
Concrete Pulverizer,hydraulic Pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type) |
Warranty: |
12 Months |
Color: |
Requirement,Customer Required |
Material: |
Q345B,NM360/400,HARDOX450/500 |
Application: |
Excavator,framework Etc.,framework And Pylons |
After-sales Service Provided: |
Online Support,Video Technical Support |
Type: |
Hydraulic,Pulverizer,Heavy Duty,Mine,Standard |
Weight: |
890kgs-4200kgs |
Name: |
Hydraulic Jaw Pulverizer,hydraulic Demolition Shear |
Suitable Excavator: |
17-24ton |
Packing: |
Pallet With Wrapping Or Customization,Wooden Pallet Or Customized |
Jaw Opening: |
0-890MM |
OEM: |
Available,YES |
Part Name: |
Excavator Pulverizer And Shear |
Product Name: |
Concrete Pulverizer,hydraulic Pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type) |
Warranty: |
12 Months |
Color: |
Requirement,Customer Required |
Material: |
Q345B,NM360/400,HARDOX450/500 |
Application: |
Excavator,framework Etc.,framework And Pylons |
After-sales Service Provided: |
Online Support,Video Technical Support |
Type: |
Hydraulic,Pulverizer,Heavy Duty,Mine,Standard |
Weight: |
890kgs-4200kgs |
Name: |
Hydraulic Jaw Pulverizer,hydraulic Demolition Shear |
Suitable Excavator: |
17-24ton |
Packing: |
Pallet With Wrapping Or Customization,Wooden Pallet Or Customized |
Jaw Opening: |
0-890MM |
OEM: |
Available,YES |
Part Name: |
Excavator Pulverizer And Shear |

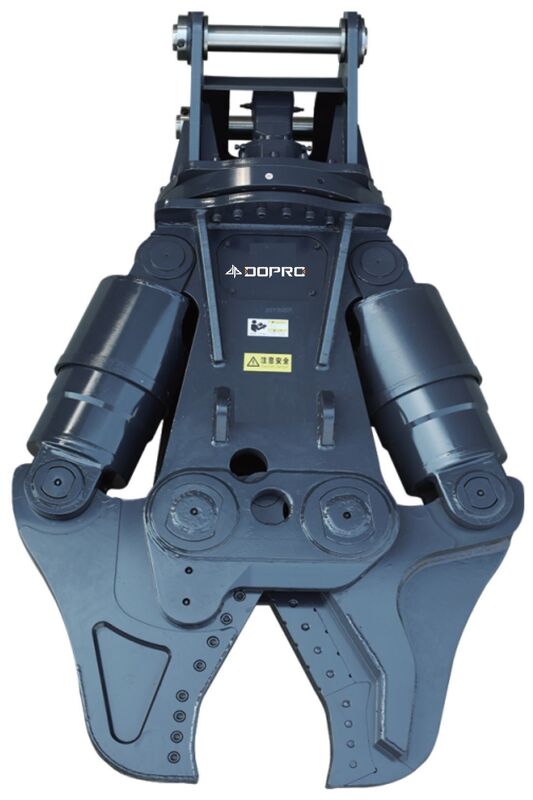

B250 DH300 PC290 320D Hydraulic sharp Shear Hydraulic Demolition Shear for 5-35 Tons Excavator Attachment
The double-cylinder hydraulic shear is an improvement of the existing double-cylinder hydraulic pliers. It is a double-cylinder hydraulic shear developed for steel shearing by adding an alloy blade. The shearing force is much higher than that of the same series of olecranon shears. Meet the needs of customers for the recovery of metals with strong hardness such as super-hard steel plates and steel bars.
Applications
Widely used in steel scrap and scrap car factories.
Main features
●Material:ThyssenKrupp XAR steel.Durable in
use, high level machining precision and high
breaking capacity.
●360° rotation function available.
>The rotation adopts an increased number of fixing screws and gear bearings, which makes
the performance more stable and the power stronger.
> Newone-clickadjustment of the split problem, skipping the cumbersome steps in the past
>The entire scissor arm has been upgraded with reinforced ribs to avoid the risk of metal
fatigue cracking
> Customized five-way sealing cylinder to avoid the risk of oil leakage and have a longer
service life
| SPECIFICATION | |||||
| DESCRIPTION | UNT | DPAP1600 | DPAP2000 | DPAP3000 | DPAP4500 |
| Applicable Excavator | ton | 14~20 | 18~26 | 26~32 | 38~48 |
| lbs | 30,864~44,092 | 39,683~57,320 | 57,320~70,547 | 83,775~105,821 | |
| Operating Weight | kg/lbs | 1,250/2,755 | 1,800/3,968 | 2,350/5,180 | 3,450/7,605 |
| Overall Length(L) | mm/inch | 1,580/62.2 | 1,806/71.1 | 1,990/78.3 | 2,336/91.9 |
| Jaw Opening | mm/inch | 800/31.4 | 980/38.5 | 1,100/43.3 | 1,300/51.1 |
| Force at Mid | ton/lbs | 70/154,323 | 120/264,554 | 195/429,901 | 270/595,248 |
| Operating Pressure | bar/psi | 280/4,061 | 300/4,351 | 320/4,641 | 320/4,641 |
| Setting Pressure | bar/psi | ||||
| Rotation Type | Fixed | ||||
