Home > products > Excavator Grapple Bucket > 360 Degree Two Cylinder 5-50 Ton Excavator Wood Grapple Attachment

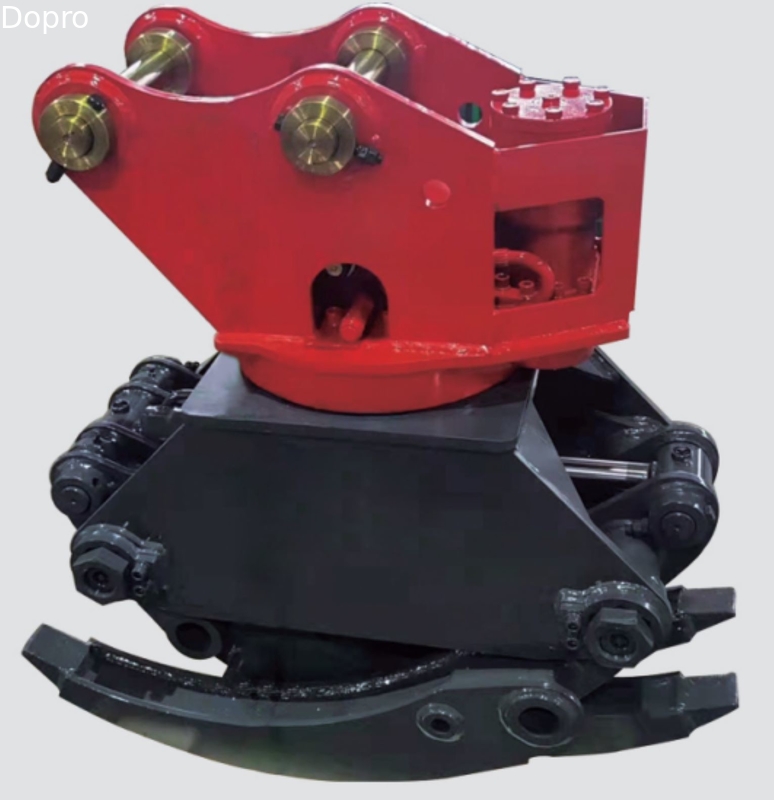

360 Degree Two Cylinder 5-50 Ton Excavator Wood Grapple Attachment

Product Details

Place of Origin: CHINA

Brand Name: Dopro

Certification: ISO CE

Model Number: DPAW6000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 40-4000

Packaging Details: Export Wooden Cases /Pallet

Delivery Time: 3-7 Working Days

Supply Ability: 4000 Pcs Per Month

Get Best Price
Highlight:

Two Cylinder Excavator Wood Grapple

,

50 Ton Excavator Wood Grapple

,

360 Degree Excavator Wood Grapple

Name:
Excavator Wood Grapple
Color:
Customer Required,Customer's Request,Yellow Or As Request
Warranty:
12 Months
Type:
Log Grapple,Rotary & Non-rotarty
Application:
Excavator,grab Wood,woods Etc
Material:
Q345B/NM360/HARDOX500
After-sales Service Provided:
Video Technical Support,Online Support
Condition:
New
Usage:
Load Or Unload Sand Or Something Else,grab The Timber,wood Or Rock Grappling
Packing:
Wooden Pallet Or Customized
Suitable Excavator:
All Brands' All Model,5-11Ton,24--30tons
Part Name:
Grapple
Origin:
YANTAI,China
Name:
Excavator Wood Grapple
Color:
Customer Required,Customer's Request,Yellow Or As Request
Warranty:
12 Months
Type:
Log Grapple,Rotary & Non-rotarty
Application:
Excavator,grab Wood,woods Etc
Material:
Q345B/NM360/HARDOX500
After-sales Service Provided:
Video Technical Support,Online Support
Condition:
New
Usage:
Load Or Unload Sand Or Something Else,grab The Timber,wood Or Rock Grappling
Packing:
Wooden Pallet Or Customized
Suitable Excavator:
All Brands' All Model,5-11Ton,24--30tons
Part Name:
Grapple
Origin:
YANTAI,China
360 Degree Two Cylinder 5-50 Ton Excavator Wood Grapple Attachment

360 degree two cylinder 5-50 Ton Excavator wood Grapple High Efficiency for excavator



What is a rotating grapple?
A rotating hydraulic grapple attachment is a specialized tool designed to be mounted onto an excavator. It features hydraulic-powered jaws that can grip and lift materials, with the added capability of 360-degree rotation for enhanced maneuverability.



Applicable conditions and product characteristics:
< Suitable for tree branches, sugarcane, stone, pipe, stone, wood
and other long strip material grasping, loading and unloeding,
handling and other operations. Widely used in agriculture, municipal
engineering, stone factory, timber factory and other construction
fields.
High strength slewing bearing device, self-protection hydraulic
motor drive, can rotate 360 degrees, easy to position at any Angle.
The motor is equipped with double overlcad and double balance device.
When the impact force is large, the intermal flow pressure can be
adjusted by itself to protect the motor in both directions.
< aNc boring process, high precision, high concenreicity, body
adopts Q355B high strength manganese plate, in 1ine with the
excavator manufacturer's standard, high strength, high toughness,
high wear resistance.



Cylinder built-in balance valve, stable operation, stable

clamping force, high safety, prevent the cylinder pressure
relief caused by grasping objects off, cylinder rod diameter
increased, greater grasping force, stronger stability.



Applicable fields
Can be used for loading and unloading straw, reeds, and slender wood.
Product Features
Made of wear-resistant steel, lightweight and wear-resistant, with a large gripping capacity and flexible and lightweight operation.
Adopting imported rotary motors, with a long service life.
The oil cylinder adopts grinding tube and imported oil seal, with short working cycle and long service life.



SPECIFICATION
MODEL DPAW500 DPAW1400 DPAW2000 DPAW3000 DPAW3800 DPAW4500
WEIGHT(kg) 400 900 1300 1700 2000 2451
MIN 100 280 310 340 566 705
MAX 1196 1709 1750 1880 2250 2600
H 675 1175 1244 1370 1846 2010
H1 397 741 778 1262 1550 1720
TON 4~7 12~18 18~25 28~35 36~42 43~47
