Highlight:
12T Excavator Demolition Shear
, 40T Excavator Demolition Shear
, Hydraulic Demolition Shears Excavator
Warranty: |
6 Months-12months |
Color: |
Requirement,Customer Required,customer's Request |
Material: |
Q345B,NM360/400,HARDOX450/500 |
Application: |
Excavator,For The Demolition Of Concrete Structures,framework Etc.,steel Recycling,framework And Pylons |
After-sales Service Provided: |
Online Support,Video Technical Support |
Type: |
Hydraulic,Heavy Duty,Mine,Standard |
Weight: |
890kgs-4200kgs |
Condition: |
100%new |
Product Name: |
Hydraulic Pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type) |
Name: |
Demolition Pulverizer,Hydraulic Jaw Pulverizer,hydraulic Demolition Shear |
Suitable Excavator: |
17-24ton,15 Ton,20-22ton |
Packing: |
Wooden Pallet Or Customized |
Jaw Opening: |
0-890MM |
Oem: |
Available,YES |
Key Word: |
Hydraulic Pulveriser |
Suitable: |
13t-50t Excavator And Backhoe |
Part Name: |
Pulverizer,Excavator Pulverizer And Shear |
Machine Type: |
04-10,18-26T Excavator |
12T-40T Excavator Demolition Shear Cutting Steel Structures Crushing Demolition Shear
12 15 18 20 24 25 30 36 40T Excavator Hydraulic Demolition Shear Cutting Steel Structures Crushing Demolition Shear
The dual cylinder hydraulic shear is suitable for different operations, including waste steel bars
Cutting processing, dismantling of scrapped cars, dismantling of steel structures, scrap
Flexible handling of steel materials, etc.
Reliable quality
The dual cylinder hydraulic shear adopts high specification blades, bringing excellent performance
Shear force. The blade can be easily disassembled and replaced without the need for grinding or welding, just by screwing the screw
Remove the wire and replace the blade.
reasonable design
The design of a double cylinder hydraulic shear with a heavy pivot cover and powerful structure
Structure, extended service life, enlarged and thickened dual cylinder design, powder
The crushing force is stable.
The installation of the dual cylinder hydraulic shear is simple, with the pin hole connected to the excavator
Connect the pipeline on the excavator to the hydraulic shear through the front-end connection
It can be used conveniently for alternating use.
Applicable conditions and product characteristics:
Suitable for the cutting of steel bars, dismantling of
scrap cars, disposal of scrap steel, etc.,.
>Double cylinder design, greater shear force;
yThe oil cylinder adopts the push-back type to
prevent the collision and accidental impact on the oil
cylinder during operation and effectively protect the
qylinder rod;
Motor. Add rotary device, add adjustable overload
balancing device, adjust the flow pressure;

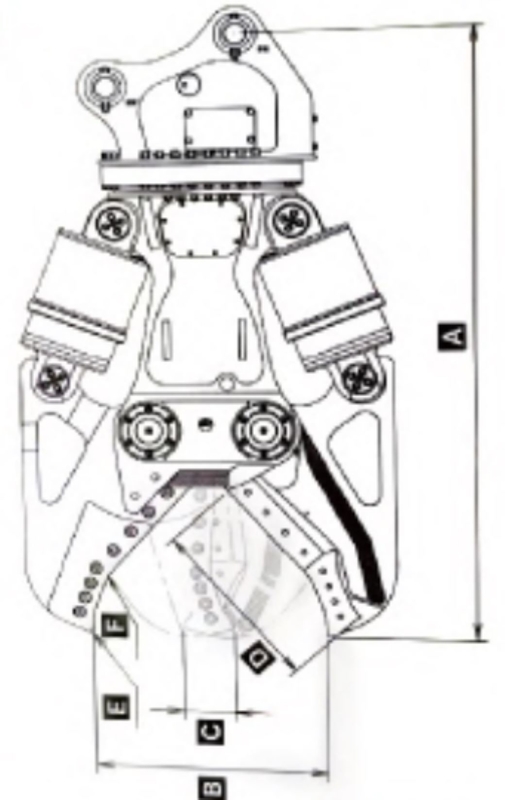

| SPECIFICATION |
| DESCRIPTION |
UNT |
DPAP1600 |
DPAP2000 |
DPAP3000 |
DPAP4500 |
| Applicable Excavator |
ton |
14~20 |
18~26 |
26~32 |
38~48 |
| lbs |
30,864~44,092 |
39,683~57,320 |
57,320~70,547 |
83,775~105,821 |
| Operating Weight |
kg/lbs |
1,250/2,755 |
1,800/3,968 |
2,350/5,180 |
3,450/7,605 |
| Overall Length(L) |
mm/inch |
1,580/62.2 |
1,806/71.1 |
1,990/78.3 |
2,336/91.9 |
| Jaw Opening |
mm/inch |
800/31.4 |
980/38.5 |
1,100/43.3 |
1,300/51.1 |
| Force at Mid |
ton/lbs |
70/154,323 |
120/264,554 |
195/429,901 |
270/595,248 |
| Operating Pressure |
bar/psi |
280/4,061 |
300/4,351 |
320/4,641 |
320/4,641 |
| Setting Pressure |
bar/psi |
|
|
|
|
| Rotation Type |
|
Fixed |
